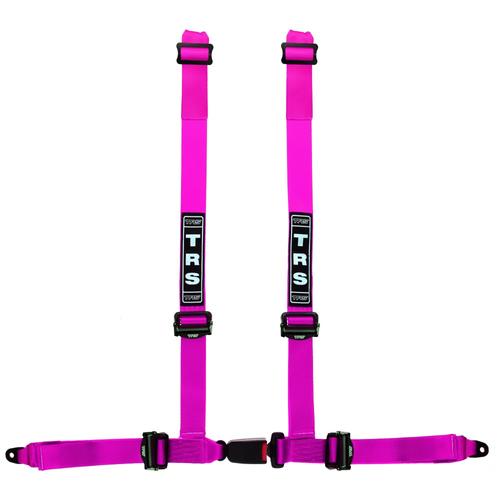

A 4 point road harness from TRS, specifically made for the Lotus Elise. Also compatible with the Exige, Evora, and 340R. With shorter shoulder straps designed to wrap around a roll bar or harness bar, these harnesses are ideal for use in your Lotus for road use or track days.
As standard they feature shoulder straps manufactured to the correct length, ready to wrap around your roll bar or harness bar, and lap straps which adjust by pulling down to tighten.
Key Features
The key features of this harness are shown below and above is a detailed description. If you are not sure this harness is the correct one for your requirements, CLICK HERE to view all Lotus Harnesses, or CLICK HERE to view the full range of TRS Harnesses.
- 4 fixing points
- Shoulder straps wrap around roll bar or harness bar.
- Shoulder straps are manufactured for Lotus vehicles to exactly the correct length to wrap around the harness bar or roll bar without excess webbing.
- Lap straps have bolt in fixings
- Road legal 16.06
- 50mm (2") shoulder straps
- 50mm (2") lap straps
- Standard colours are Red, Blue, and Black. Yellow, Green, Grey/Silver, Orange, Pink, and Miami Blue are special order (see dropdown above)
- Push button release buckle
- Made in England
Shoulder Straps
- Shoulder straps are approximately 105cm from the adjuster to the end of the strap
- The adjustment range of the lower shoulder strap is between 10cm and 40cm
- These harnesses are supplied ready to wrap around a roll or harness bar. They cannot be fitted without these.
- Once the webbing has been wrapped around this will leave a maximum length of approximately 55cm from the adjuster to the roll / harness bar
Want to find out more about how to correctly wrap harness shoulder straps around a harness or roll bar? Click here to read our brief guide: How To Wrap Your Harness Around a Roll Cage
Options
Free Keyring With Every TRS Order!
Exclusive offer for Carnoisseur customers! We are now giving away a free TRS keyring worth £12.95 with every order for TRS harnesses!
This superb keyring from TRS is made from the same high quality webbing as their harnesses, and is available in the same range of colours too: Black, Red, Blue, Yellow, Green, Grey/Silver, Orange, Pink, Miami Blue, and Purple. Made in the UK at the TRS factory, the keyring is 10cm in length, and is a great looking, practical accessory for all motorsport enthusiasts.
Select which colour TRS keyring you would like to add to your order using the dropdown menu above.
Please note that just one keyring is provided per order.
Adjusters
You can upgrade the harnesses to the Superlite or Ultralite versions. As standard TRS harnesses use steel anti-creep adjusters. Also available are premium aluminium alloy adjusters, which in addition to being lightweight, offer a smoother and faster adjustment. The Superlite harnesses use these lightweight aluminium adjusters on the shoulder straps, and the Ultralite harnesses use them on both the shoulder and lap straps.
They are highly recommended for vehicles being shared between multiple drivers, and in general we always recommend upgrading to the aluminium adjusters due to their premium look and feel.
Standard Steel Adjusters
50mm (2") steel adjusters
75mm (3") steel adjusters
Premium Aluminium Adjusters
50mm (2") aluminium adjusters
75mm (3") aluminium adjusters
Webbing Colour
TRS Harnesses are available in 10 different webbing colours: Red, Blue, Black, Yellow, Green, Grey/Silver, Orange, Pink, Miami Blue, and Purple.
Red, Blue, and Black harnesses are the most common colours, so harnesses in those colours are usually in stock, if you need your harnesses in a hurry.
Thread Colour
As standard, TRS Harnesses are stitched using the same colour thread as the webbing, but contrasting colours are also available. There are 9 different thread colours available: Red, Blue, Black, Yellow, Green, Grey/Silver, Orange, Pink, and Miami Blue.
Pull Down or Pull Up Lap Straps?
Lap straps can be supplied with either pull down or pull up adjusters. You can make your selection using the dropdown menu above.
We normally recommend pull down adjusters that sit approximately 12cm from the buckle. We recommend these so you have easy access to the adjuster, and they will definitely be positioned within the seat.
As standard, pull up adjusters will sit approximately 18cm from the fixing point at the end of the lap strap, making them difficult to access (they will be down by the sides of the seat), however we are happy to supply them if this is your preference. If you would like pull up adjusters that are a different distance from the fixing point, please contact us. We have supplied some customers with harnesses that have pull up lap adjusters that are 22cm from the fixing point but you would need to check to see if this would be right for your vehicle and the seat you have fitted.
Extras
TRS Shoulder Pads
TRS Webbing Cutter
With these harnesses we offer some optional extras for your comfort and safety, which you can select using the dropdown boxes above.
A pair of TRS Shoulder Pads are available in three colours: black, red, and blue. They simply attach with velcro around the shoulder strap area of the harness, for added comfort for the wearer. They will be provided in the appropriate size for the harness you choose.
Also available is a TRS Webbing Cutter, for use in case of emergencies. This is a knife for a driver, passenger or marshal to cut through harnesses and webbing in the event of an accident, to quickly release the wearer and avoid being trapped in the car. The cutter meets the MSA Blue Book requirement which states "Belt cutter(s) must be carried on board at all times", so it's a must-have when racing.
CLICK HERE to download the fitting instructions for this TRS Harness.
This TRS Harness can be fitted by a competent enthusiast or at a professional workshop.
