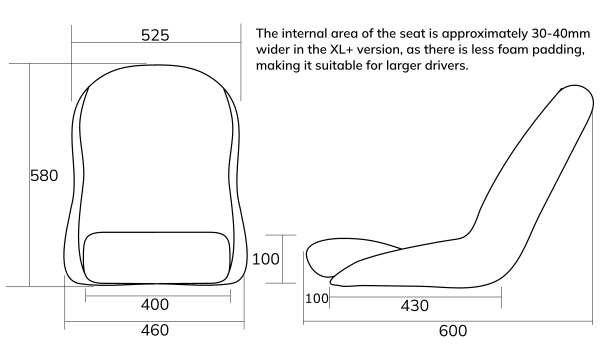

Please note the height of the seat shown is from the ground to the highest point of the seat, when the seat base is flat on the ground as shown in the diagram. All measurements are in millimetres.
Classic/Period fixed back sports seat - a version of the Roadster XL with more internal space available.
- Traditional styling with modern construction
- Tubular steel frame with base suspension diaphragm
- Wider hip area for increased comfort
- XL+ version designed to accomodate the larger driver
- Although the external dimensions are the same as the Roadster XL, the padding is adjusted at the lower back and base cushion to provide an additional 30-40mm of extra space
- Choice of colours (see dropdowns above)
- Vinyl and Leather trims available (see dropdowns above)
- Signature Range options also available - choice of stitching colours, Cobra logo colour and additional logos - contact us for details
- Price is for a single seat - please select quantity required
- This seat is fitted using subframes - view the Cobra subframes listing to see if subframes are available for your vehicle
Weight: 8kg
Cobra premium, low profile seat runners can be added to your order using the dropdown menu above.
Options
Piping
Classic seat without piping
Roadster seat with piping
Piping is available on this seat, as an optional extra. Piping is a small strip of extra vinyl material sewn along the edge seams of the seat. Usually this is the same colour as the vinyl on the rest of the seat, but can also be made in a contrasting colour for an extra charge.
Runners
These seats can be base mounted, which means they have threaded holes for mounting on the bottom of the seat - 2 on each side. Often the seat will be bolted onto seat runners to allow the seat to be adjusted backwards and forwards. Cobra's Premium Low Profile Seat Runners are available to select with the dropdown box above. They include all the mounting hardware necessary.
Heated Seats
Example of the heater switch mounting
Components included with the seat heater
Seat heater wiring diagram
As an optional extra, seat heaters can be installed. They are pre-fitted in the seat, and come with everything you need to install them in your vehicle - wiring, a relay, switch, and drilling template. Installation is easy, and just involves connecting to a 12V supply and finding a location to mount the switch (the example image above shows the switch mounted in original equipment interior plastic). An instruction manual is provided and can be viewed online here. Please note that it is not designed to integrate with the original equipment wiring.
This Cobra Roadster XL+ Seat can be fitted by a competent enthusiast or at a professional workshop.
